GSM Telemetry terminal
Project overview
In a semi industrial form this device has earned trust. The prototypes run error-lessly for almost a year now.

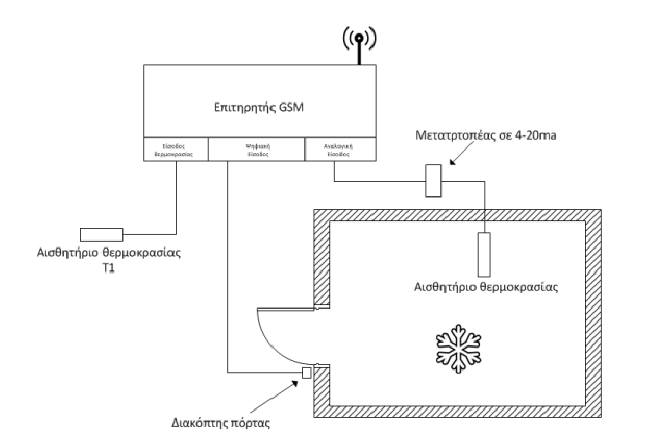

example application on a remote freezer
Some application examples
Intrested in more info? contact me here

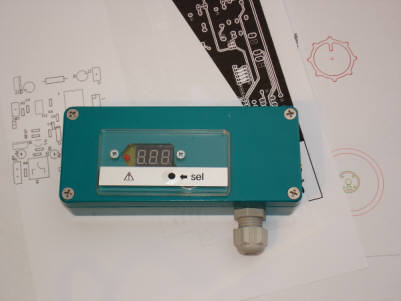

Its a GSM terminal equipped with analog and digital inputs and the necessary functions to inform you for any anomaly in your remote running application.
Built in a durable and sealed aluminum enclosure can be installed in a wide range of application areas like the top of your home freezer as good as a hazardous boat engine room or an industrial panel.
Device main features:
Hardware.
- One temperature input.
- One scalable 4-20ma or 0-10v analog input
- One wide voltage range digital input.
Software:
- Full parameter setup through simple SMS messages.
- No computer required to setup the device.
- Logging of daily minimum - maximum values of both analog inputs.
- Programmable notification limits on both analog inputs.
- Programmable notifications in digital input status change.
- Totalizer function which counts events on the digital input.
- Four programmable notification messages in a 24 hour period.
- Instant SMS status notification by SMS query.
- Instant SMS status notification with a simple call.
- SMS menu in English language.
- Day based reminder for balance recharge.
- Home - business security.
- Telemetry in freezers
- Telemetry in pumping stations.
This device will keep you updated wherever you are.

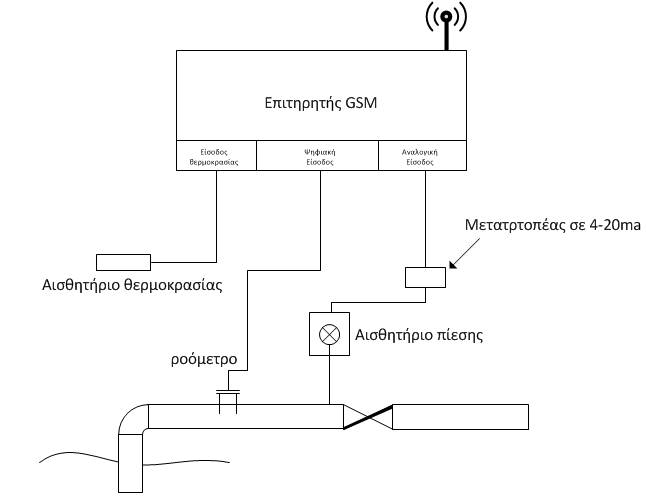

example application in pumping station
The prototypes have successfully reached the end of the test period with no problems.
